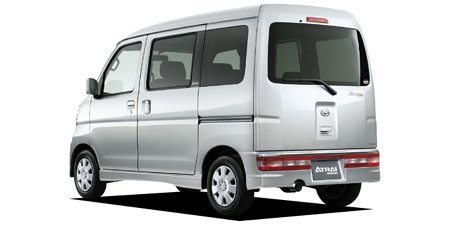

DAIHATSU ATRAI WAGON CUSTOM TURBO RS - specifications
Model: TA-S330G, modification: CUSTOM TURBO RS
Description
| Modification | CUSTOM TURBO RS |
| Chassis ID | TA-S330G |
| Registration Year | 2006.11 |
| Exterior Dimensions, mm | 3395 x 1475 x 1875 mm |
| Interior Dimensions, mm | 2015 x 1310 x 1350 mm |
| Wheelbase, mm | 2450mm |
| Front/Rear Track, mm | 1295mm//1290mm |
| Curb Weight, kg | 1010kg |
| Body Type | Light RV |
| Doors/Seats | 5 door//4 |
Engine
| Model | EF-DET |
| Type | water cooling inline 3 cylinder DOHC 12-valves turbo |
| Bore X Stroke, mm | 68.0mmx60.5mm |
| Capacity, cc | 659cc |
| Compression Ratio | 8.5 |
| Fuel System | EFI |
| Max. Power, HP/RPM | 64ps(47kW)/5900rpm |
| Max. Power, HP/RPM | 10.5kg m(103N m)/4000rpm |
| Supercharger | Turbo |
| Fuel tank capacity, L | 40 l |
| Fuel Efficiency, l/100 km | Regular unleaded gasoline |
| Fuel consumption, l/100 km | 14.0km/リットル (10/15) |
Steering & Suspension
| Steering Column Length | Power assist equipped rack&pinion |
| Suspension – Front/Rear | McPherson Strut type Coil spring |
| Brake – Front/Rear | トレーリングリンク Axle Coil spring |
| Front brake | disk |
| Rear brake | Drum |
| Front wheel | 165/65R13 77S |
| Rear wheel | 165/65R13 77S |
| The minimum diameter of a turn | 4.6m |
Gearbox
| Number of steps / Type | 4AT |
| Drive | Full-time 4WD |
| LSD | ---- |
Exterier equipment
| Front fog lights | Standard |
| Rear fog lights | It is not |

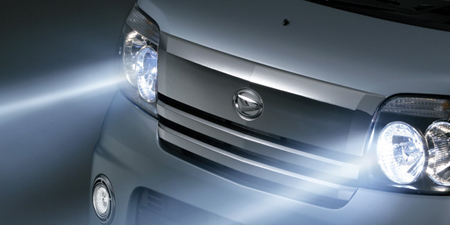

| Xenon headlights | Standard |
| Additional front headlights | It is not |
| Front / rear spoiler | Standard//Standard |
| Rear wiper | Standard |
Navigation, audio and video
| Navigation | It is not |
| Navigational device | It is not |

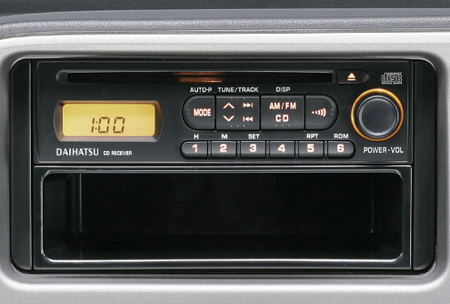

| Audio | AM/FMラジオ |
| CD-player | 単装 |
Safe equipment

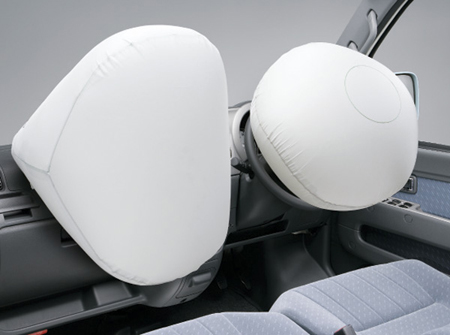

| Driver's air bag | Standard |
| Front passenger air bag | Standard |
| Side airbags | It is not |
| ABS | Standard |
| TRC | It is not |
| Safety belts with tensioner | Standard |
| Safety belts with tensioner | Standard |
| Safety belts with holding | Standard |

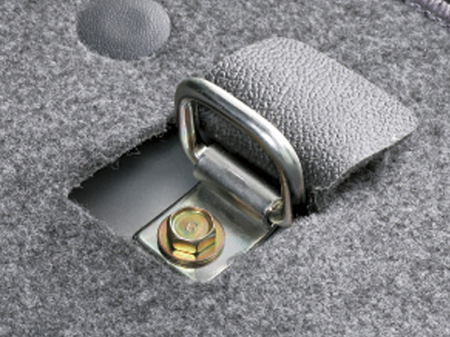

| The mechanism of fixation of children's seats | Standard |
| Safety planks | Standard |
| Brake assist | Standard |
| The design of the body, providing energy absorption and dispersion of strike | 採用 |
| EBD | Standard |
| Anti theft device | It is not |
| Additional equipment | No |
Comfort
| Air conditioner | Manual |

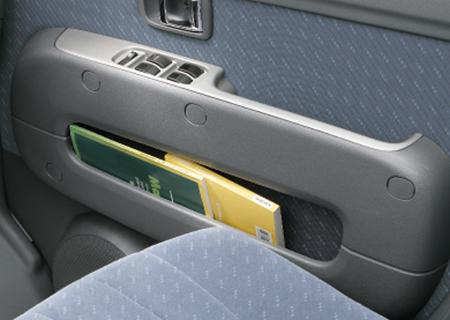

| Power window | Standard |
| Central switch | Standard |
| Steering column length | It is not |
| Steering column height | It is not |
| Cruise control | It is not |
| Finishing leather steering wheel | It is not |
| Leather seats |
| Power front seat | It is not |
| Power rear seat | It is not |
| Wood panel | It is not |
| Sunroof | It is not |
| Sunroof | 13 inches standard |

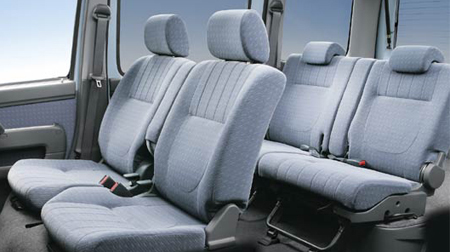

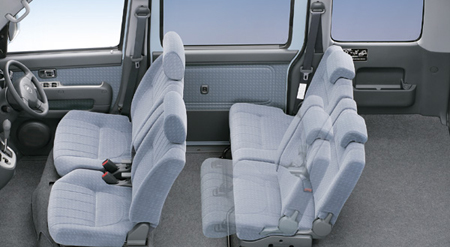

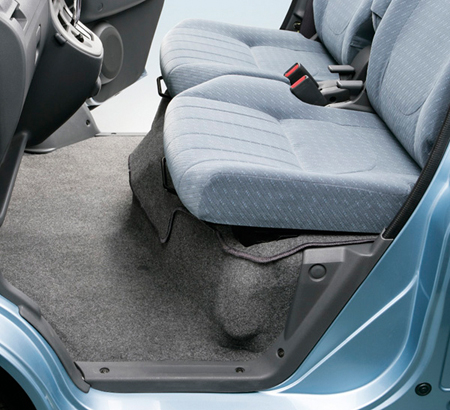

| Folding seat | split |
| Glass with a UV filter | Standard |
| Toned glasses | Standard |
Gear ratio
| CVT | |
| 1 | 2.730 |
| 2 | 1.526 |
| 3 | 1.000 |
| 4 | 0.696 |
| 5 | |
| 6 | |
| 7 | |
| Reverse | |
| Main drive | 2.290 |
