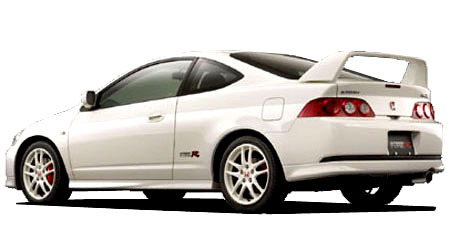

HONDA INTEGRA TYPE R - specifications

Model: ABA-DC5, modification: TYPE R
Description
Modification TYPE R
Chassis ID ABA-DC5
Registration Year 2004.9
Exterior Dimensions, mm 4385 x 1725 x 1385 mm
Interior Dimensions, mm 1770 x 1430 x 1135 mm
Wheelbase, mm 2570mm
Front/Rear Track, mm 1490mm//1490mm
Curb Weight, kg 1190kg
Body Type Купе
Doors/Seats 3 door//4

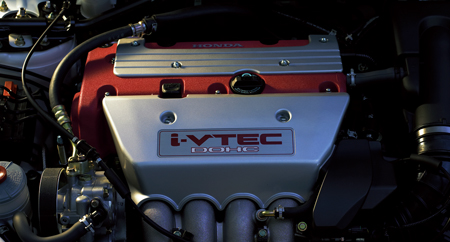

Engine
Model K20A
Type water cooling inline 4 cylinder DOHC 16-valves
Bore X Stroke, mm 86.0mmx86.0mm
Capacity, cc 1998cc
Compression Ratio 11.5
Fuel System 電子制御燃料噴射 type (ホンダPGM-FI)
Max. Power, HP/RPM 220ps(162kW)/8000rpm
Max. Power, HP/RPM 21.0kg m(206N m)/7000rpm
Supercharger It is not
Fuel tank capacity, L 50 l
Fuel Efficiency, l/100 km Unleaded premium gasoline
Fuel consumption, l/100 km 12.4km/リットル (10/15)
Steering & Suspension
Steering Column Length Power assist equipped rack&pinion
Suspension – Front/Rear McPherson
Brake – Front/Rear Double wishbone

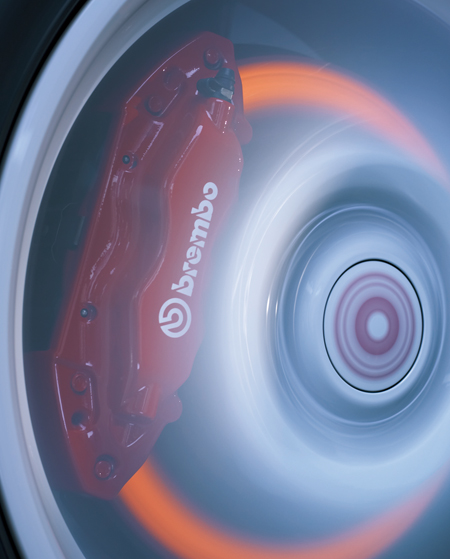

Front brake disk
Rear brake disk
Front wheel 215/45ZR17
Rear wheel 215/45ZR17
The minimum diameter of a turn 5.7m

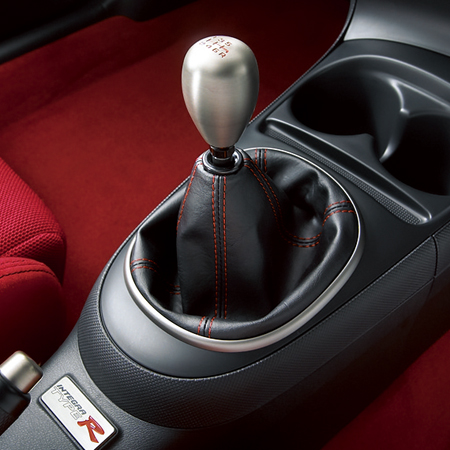

Gearbox
Number of steps / Type 6MT
Drive FF
LSD standard
Exterier equipment
Front fog lights It is not
Rear fog lights It is not

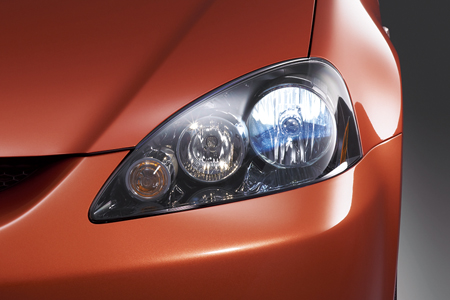

Xenon headlights Standard
Additional front headlights It is not

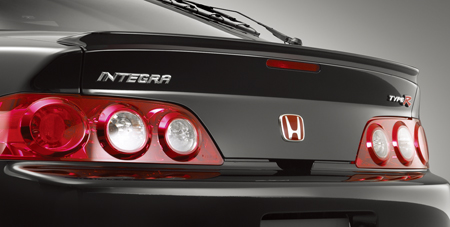

Front / rear spoiler It is not//Standard
Rear wiper Option
Navigation, audio and video
Navigation Option
Navigational device HDD
Audio It is not
CD-player It is not
Safe equipment
Driver's air bag Standard
Front passenger air bag Standard
Side airbags It is not
ABS Standard
TRC It is not
Safety belts with tensioner Standard
Safety belts with tensioner Standard
Safety belts with holding Standard
The mechanism of fixation of children's seats Standard
Safety planks Standard
Brake assist It is not
The design of the body, providing energy absorption and dispersion of strike 採用
EBD It is not

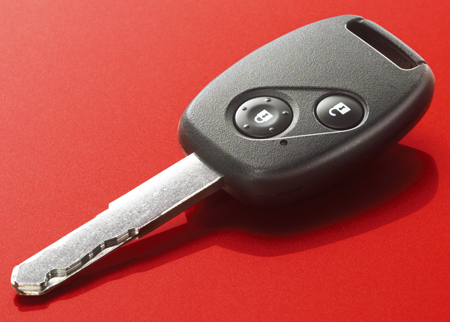

Anti theft device Standard
Additional equipment It is not
Comfort
Air conditioner Full Auto
Power window Standard
Central switch Standard
Steering column length It is not
Steering column height Standard
Cruise control It is not

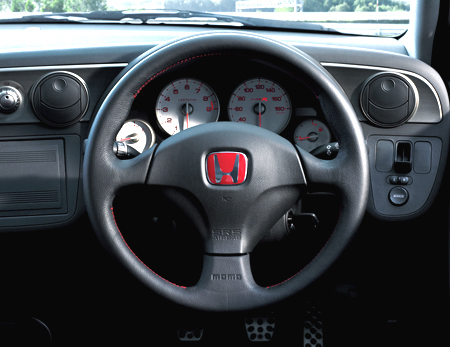

Finishing leather steering wheel Standard

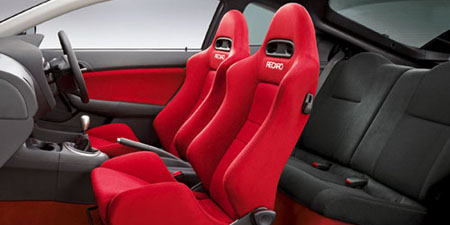

Leather seats
Power front seat It is not
Power rear seat It is not
Wood panel It is not
Sunroof It is not
Sunroof 17 inches standard
Folding seat split
Glass with a UV filter Standard
Toned glasses Option
Gear ratio
CVT
1 3.266
2 2.130
3 1.517
4 1.212
5 0.972
6 0.780
7
Reverse
Main drive 3.583
