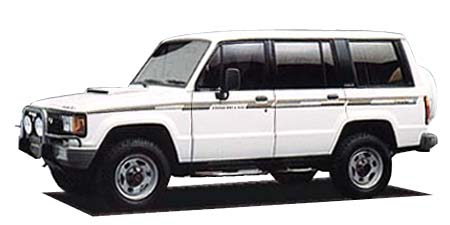

ISUZU BIGHORN BASIC LONG - specifications

Model: S-UBS55FK, modification: BASIC LONG
Description
Modification BASIC LONG
Chassis ID S-UBS55FK
Registration Year 1988.12
Exterior Dimensions, mm 4470 x 1650 x 1820 mm
Interior Dimensions, mm ----x----x----mm
Wheelbase, mm 2650mm
Front/Rear Track, mm 1390mm//1400mm
Curb Weight, kg 1710kg
Body Type SUV
Doors/Seats 5 door//5
Engine
Model 4JB1-T
Type inline 4 cylinder OHVturbo (Diesel)
Bore X Stroke, mm 93.0mmx102.0mm
Capacity, cc 2771cc
Compression Ratio 17.5
Fuel System 分配型燃料噴射ポンプ
Max. Power, HP/RPM 110ps(81kW)/3600rpm
Max. Power, HP/RPM 23.0kg m(225.6N m)/2300rpm
Supercharger Turbo
Fuel tank capacity, L 83 l
Fuel Efficiency, l/100 km Diesel
Fuel consumption, l/100 km (JC08)
Steering & Suspension
Steering Column Length Other
Suspension – Front/Rear Double wishbone トーションバースプリング type Independent suspension
Brake – Front/Rear 半楕円リーフスプリング type 車軸懸架
Front brake Ventilated disk
Rear brake disk
Front wheel 215SR15
Rear wheel 215SR15
The minimum diameter of a turn 5.4m
Gearbox
Number of steps / Type 5MT
Drive Part-time 4WD
LSD option
Exterier equipment
Front fog lights Option
Rear fog lights It is not
Xenon headlights It is not
Additional front headlights It is not
Front / rear spoiler It is not//It is not
Rear wiper Standard
Navigation, audio and video
Navigation It is not
Navigational device It is not
Audio It is not
CD-player It is not
Safe equipment
Driver's air bag It is not
Front passenger air bag It is not
Side airbags It is not
ABS It is not
TRC It is not
Safety belts with tensioner It is not
Safety belts with tensioner It is not
Safety belts with holding It is not
The mechanism of fixation of children's seats It is not
Safety planks It is not
Brake assist It is not
The design of the body, providing energy absorption and dispersion of strike It is not
EBD It is not
Anti theft device It is not
Additional equipment No
Comfort
Air conditioner It is not
Power window Option
Central switch Standard
Steering column length It is not
Steering column height It is not
Cruise control It is not
Finishing leather steering wheel It is not
Leather seats
Power front seat It is not
Power rear seat It is not
Wood panel It is not
Sunroof It is not
Sunroof Option settings NO
Folding seat 一体
Glass with a UV filter It is not
Toned glasses It is not
Gear ratio
CVT
1 3.767
2 2.314
3 1.404
4 1.000
5 0.809
6
7
Reverse
Main drive 3.873
