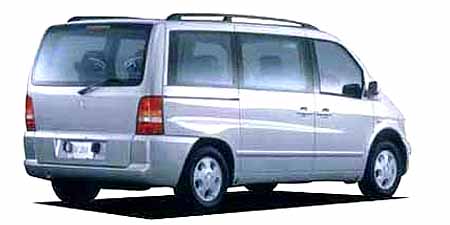

MERCEDES BENZ VCLASS V230 - specifications

Model: GH-638230, modification: V230
Description
Modification V230
Chassis ID GH-638230
Registration Year 2002.10
Exterior Dimensions, mm 4670 x 1890 x 1890 mm
Interior Dimensions, mm ----x----x----mm
Wheelbase, mm 3000mm
Front/Rear Track, mm 1620mm//1630mm
Curb Weight, kg 1940kg
Body Type Минивэны и однообъемники
Doors/Seats 5 door//6
Engine
Model 1118
Type inline 4 cylinder DOHC
Bore X Stroke, mm 90.9mmx88.4mm
Capacity, cc 2294cc
Compression Ratio 10.4
Fuel System 電子制御
Max. Power, HP/RPM 143ps(105kW)/5000rpm
Max. Power, HP/RPM 21.9kg m(215N m)/3500~4500rpm
Supercharger It is not
Fuel tank capacity, L 78 l
Fuel Efficiency, l/100 km Unleaded premium gasoline
Fuel consumption, l/100 km 7.7km/リットル (10/15)
Steering & Suspension
Steering Column Length Power assist equipped rack&pinion
Suspension – Front/Rear ウィッシュボーン ロアアーム+ McPherson Strut
Brake – Front/Rear セミトレーリングアーム
Front brake Ventilated disk
Rear brake disk
Front wheel 215/65R15
Rear wheel 215/65R15
The minimum diameter of a turn 5.8m
Gearbox
Number of steps / Type 4AT
Drive FF
LSD ----
Exterier equipment
Front fog lights Standard
Rear fog lights Standard
Xenon headlights It is not
Additional front headlights It is not
Front / rear spoiler It is not//It is not
Rear wiper Standard
Navigation, audio and video
Navigation Option
Navigational device It is not
Audio AM/FM radio with CS player
CD-player It is not
Safe equipment
Driver's air bag Standard
Front passenger air bag Standard
Side airbags It is not
ABS Standard
TRC It is not
Safety belts with tensioner Standard
Safety belts with tensioner It is not
Safety belts with holding Standard
The mechanism of fixation of children's seats It is not
Safety planks It is not
Brake assist It is not
The design of the body, providing energy absorption and dispersion of strike It is not
EBD It is not
Anti theft device Standard
Additional equipment No
Comfort
Air conditioner Full Auto
Power window Standard
Central switch Standard
Steering column length Standard
Steering column height Standard
Cruise control It is not
Finishing leather steering wheel Option
Leather seats
Power front seat It is not
Power rear seat It is not
Wood panel It is not
Sunroof Option
Sunroof 15 inches standard
Folding seat split
Glass with a UV filter It is not
Toned glasses It is not
Gear ratio
CVT
1
2
3
4
5
6
7
Reverse
Main drive ----
