MITSUBISHI PAJERO MINI NAVI EDITION VR - specifications
Model: ABA-H58A, modification: NAVI EDITION VR
Description
| Modification | NAVI EDITION VR |
| Chassis ID | ABA-H58A |
| Registration Year | 2009.12 |
| Exterior Dimensions, mm | 3395 x 1475 x 1635 mm |
| Interior Dimensions, mm | 1665 x 1220 x 1210 mm |
| Wheelbase, mm | 2280mm |
| Front/Rear Track, mm | 1270mm//1270mm |
| Curb Weight, kg | 980kg |
| Body Type | Light RV |
| Doors/Seats | 3 door//4 |
Engine
| Model | 4A30インタークーラーターボ |
| Type | inline 4 cylinder SOHC 16-valves IC-turbo |
| Bore X Stroke, mm | 60.0mmx58.3mm |
| Capacity, cc | 659cc |
| Compression Ratio | 8.5 |
| Fuel System | ECI-MULTI(電子制御燃料噴射) |
| Max. Power, HP/RPM | 64ps(47kW)/6000rpm |
| Max. Power, HP/RPM | 9.0kg m(88N m)/4000rpm |
| Supercharger | IC turbo |
| Fuel tank capacity, L | 43 l |
| Fuel Efficiency, l/100 km | Regular unleaded gasoline |
| Fuel consumption, l/100 km | (JC08) |

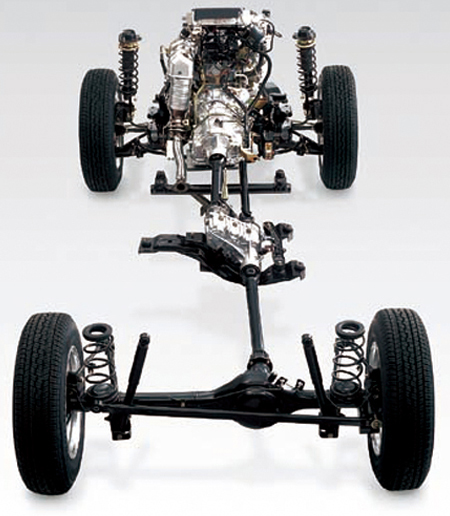

Steering & Suspension
| Steering Column Length | Power assist equipped rack&pinion |
| Suspension – Front/Rear | McPherson Strut type Coil spring |
| Brake – Front/Rear | 5-link Coil spring |
| Front brake | Ventilated disk |
| Rear brake | Drum |

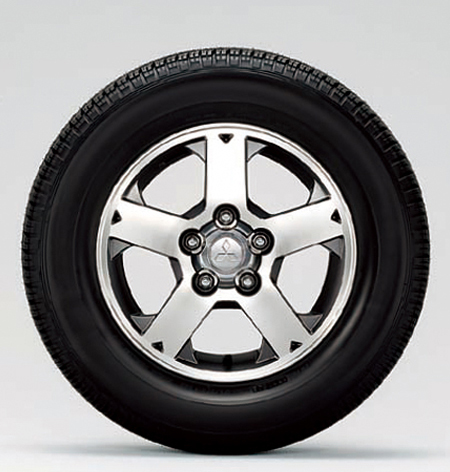

| Front wheel | 175/80R15 |
| Rear wheel | 175/80R15 |
| The minimum diameter of a turn | 4.8m |
Gearbox
| Number of steps / Type | 4AT |
| Drive | Part-time 4WD |
| LSD | ---- |
Exterier equipment
| Front fog lights | Option |
| Rear fog lights | It is not |
| Xenon headlights | It is not |
| Additional front headlights | It is not |
| Front / rear spoiler | It is not//Option |
| Rear wiper | Standard |
Navigation, audio and video

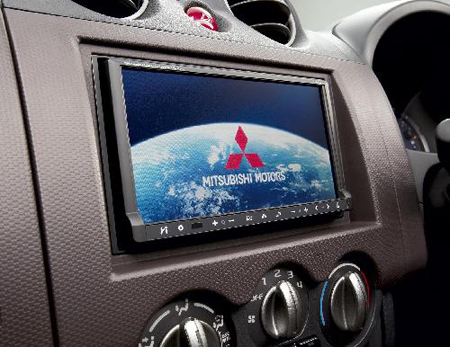

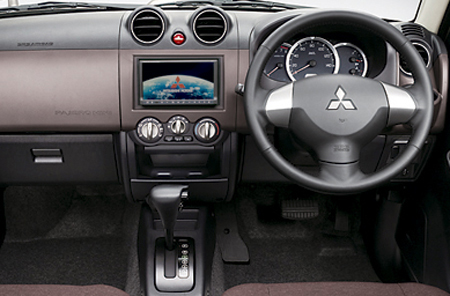

| Navigation | Standard |
| Navigational device | メモリータイプ |

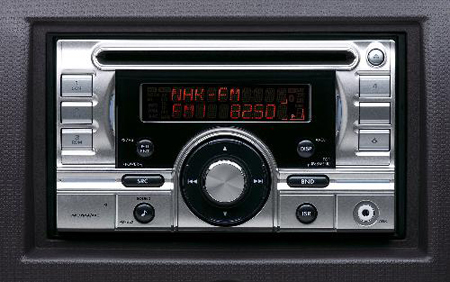

| Audio | AM/FMラジオ |
| CD-player | 単装 |
Safe equipment
| Driver's air bag | Standard |
| Front passenger air bag | Standard |
| Side airbags | It is not |
| ABS | Standard |
| TRC | It is not |
| Safety belts with tensioner | Standard |
| Safety belts with tensioner | Standard |
| Safety belts with holding | Standard |
| The mechanism of fixation of children's seats | It is not |
| Safety planks | Standard |
| Brake assist | Standard |
| The design of the body, providing energy absorption and dispersion of strike | 採用 |
| EBD | It is not |
| Anti theft device | Standard |
| Additional equipment | No |
Comfort

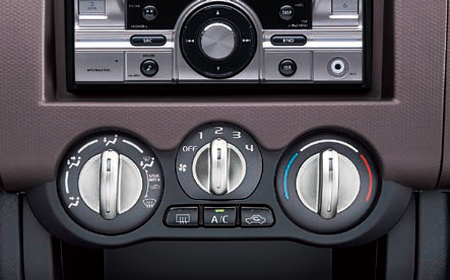

| Air conditioner | Manual |

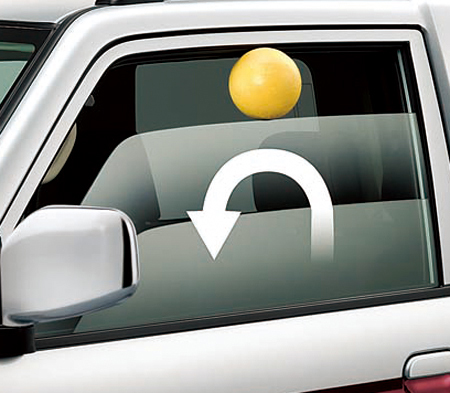

| Power window | Standard |
| Central switch | Standard |
| Steering column length | It is not |
| Steering column height | It is not |
| Cruise control | It is not |
| Finishing leather steering wheel | Standard |
| Leather seats |
| Power front seat | It is not |
| Power rear seat | It is not |
| Wood panel | It is not |
| Sunroof | It is not |
| Sunroof | 15 inches standard |

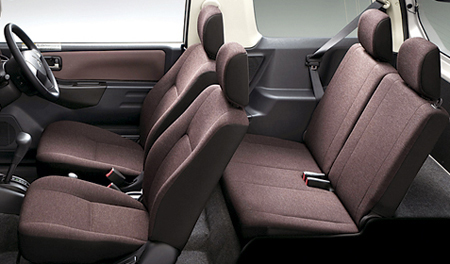

| Folding seat | split |
| Glass with a UV filter | Standard |
| Toned glasses | Standard |
Gear ratio
| CVT | |
| 1 | 2.846 |
| 2 | 1.581 |
| 3 | 1.000 |
| 4 | 0.685 |
| 5 | |
| 6 | |
| 7 | |
| Reverse | |
| Main drive | 2.176 |
