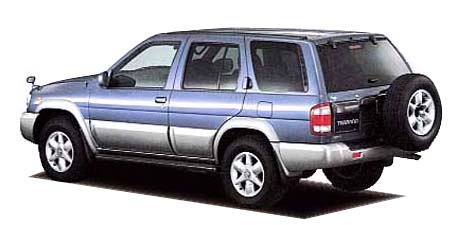

NISSAN TERRANO WIDE BODY R3M-SE LIMITED - specifications
Model: KH-TR50, modification: WIDE BODY R3M-SE LIMITED
Description
| Modification | WIDE BODY R3M-SE LIMITED |
| Chassis ID | KH-TR50 |
| Registration Year | 1999.10 |
| Exterior Dimensions, mm | 4640 x 1820 x 1730 mm |
| Interior Dimensions, mm | 1915 x 1465 x 1115 mm |
| Wheelbase, mm | 2700mm |
| Front/Rear Track, mm | 1520mm//1525mm |
| Curb Weight, kg | 1930kg |
| Body Type | SUV |
| Doors/Seats | 5 door//5 |
Engine
| Model | ZD30DDTi |
| Type | inline 4 cylinder DOHCIC-turbo (Diesel) |
| Bore X Stroke, mm | 96.0mmx102.0mm |
| Capacity, cc | 2953cc |
| Compression Ratio | 17.9 |
| Fuel System | EDI(電子制御燃料噴射装置) |
| Max. Power, HP/RPM | 170ps(125kW)/3600rpm |
| Max. Power, HP/RPM | 36.0kg m(353.0N m)/1800rpm |
| Supercharger | IC turbo |
| Fuel tank capacity, L | 80 l |
| Fuel Efficiency, l/100 km | Diesel |
| Fuel consumption, l/100 km | 11.2km/リットル (10/15) |
Steering & Suspension
| Steering Column Length | Power assist equipped rack&pinion |
| Suspension – Front/Rear | Independent suspension Strut type |
| Brake – Front/Rear | 5リンク Coil spring |
| Front brake | Ventilated disk |
| Rear brake | Drum |
| Front wheel | 245/70R16 107S |
| Rear wheel | 245/70R16 107S |
| The minimum diameter of a turn | 5.7m |
Gearbox
| Number of steps / Type | 4AT |
| Drive | Full-time 4WD |
| LSD | option |
Exterier equipment
| Front fog lights | Standard |
| Rear fog lights | It is not |
| Xenon headlights | Option |
| Additional front headlights | Option |
| Front / rear spoiler | It is not//It is not |
| Rear wiper | Standard |
Navigation, audio and video
| Navigation | Option |
| Navigational device | It is not |
| Audio | It is not |
| CD-player | It is not |
Safe equipment
| Driver's air bag | Standard |
| Front passenger air bag | Standard |
| Side airbags | Option |
| ABS | Standard |
| TRC | It is not |
| Safety belts with tensioner | Standard |
| Safety belts with tensioner | Standard |
| Safety belts with holding | Standard |
| The mechanism of fixation of children's seats | Standard |
| Safety planks | Standard |
| Brake assist | It is not |
| The design of the body, providing energy absorption and dispersion of strike | It is not |
| EBD | It is not |
| Anti theft device | It is not |
| Additional equipment | No |

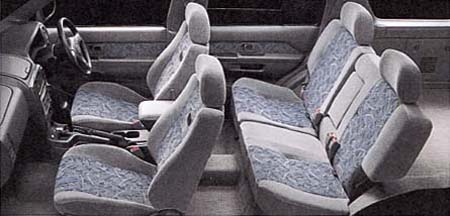

Comfort
| Air conditioner | Full Auto |
| Power window | Standard |
| Central switch | Standard |
| Steering column length | It is not |
| Steering column height | Standard |
| Cruise control | It is not |
| Finishing leather steering wheel | Standard |
| Leather seats |
| Power front seat | It is not |
| Power rear seat | It is not |
| Wood panel | Option |
| Sunroof | Option |
| Sunroof | 16 inches standard |
| Folding seat | split |
| Glass with a UV filter | Standard |
| Toned glasses | Standard |
Gear ratio
| CVT | |
| 1 | |
| 2 | |
| 3 | |
| 4 |
| 5 | |
| 6 | |
| 7 | |
| Reverse | |
| Main drive | ---- |
