SAAB 93 SERIES 9-3 SPORT SEDAN ARC - specifications
Model: GH-FB207, modification: 9-3 SPORT SEDAN ARC
Description
| Modification | 9-3 SPORT SEDAN ARC |
| Chassis ID | GH-FB207 |
| Registration Year | 2004.12 |
| Exterior Dimensions, mm | 4635 x 1760 x 1465 mm |
| Interior Dimensions, mm | ----x----x----mm |
| Wheelbase, mm | 2675mm |
| Front/Rear Track, mm | 1525mm//1505mm |
| Curb Weight, kg | 1500kg |
| Body Type | Седан |
| Doors/Seats | 4 door//5 |
Engine
| Model | ---- |
| Type | water cooling inline 4 cylinder DOHC 16-valves IC-turbo |
| Bore X Stroke, mm | 86.0mmx86.0mm |
| Capacity, cc | 1998cc |
| Compression Ratio | ---- |
| Fuel System | トリオニック |
| Max. Power, HP/RPM | 175ps(129kW)/5500rpm |
| Max. Power, HP/RPM | 27.0kg m(265N m)/2200rpm |
| Supercharger | IC turbo |
| Fuel tank capacity, L | 62 l |
| Fuel Efficiency, l/100 km | Unleaded premium gasoline |
| Fuel consumption, l/100 km | 9.8km/リットル (10/15) |
Steering & Suspension
| Steering Column Length | Power assist equipped rack&pinion |
| Suspension – Front/Rear | McPherson |
| Brake – Front/Rear | Independent suspension |
| Front brake | Ventilated disk |
| Rear brake | disk |

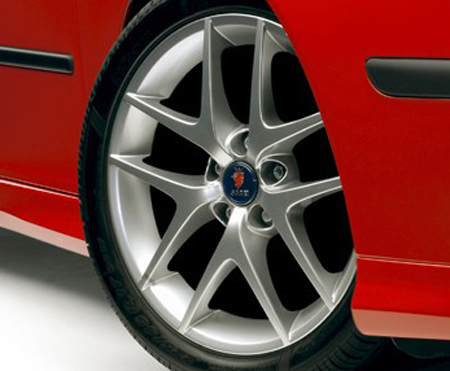

| Front wheel | 215/55R16 |
| Rear wheel | 215/55R16 |
| The minimum diameter of a turn | 5.4m |
Gearbox
| Number of steps / Type | 5AT |
| Drive | FF |
| LSD | ---- |
Exterier equipment
| Front fog lights | Standard |
| Rear fog lights | Standard |
| Xenon headlights | It is not |
| Additional front headlights | It is not |
| Front / rear spoiler | It is not//It is not |
| Rear wiper | It is not |
Navigation, audio and video
| Navigation | It is not |
| Navigational device | It is not |
| Audio | AM/FMラジオ |
| CD-player | 連装 |
Safe equipment
| Driver's air bag | Standard |
| Front passenger air bag | Standard |
| Side airbags | Standard |
| ABS | Standard |
| TRC | Standard |
| Safety belts with tensioner | It is not |
| Safety belts with tensioner | It is not |
| Safety belts with holding | Standard |
| The mechanism of fixation of children's seats | It is not |
| Safety planks | Standard |
| Brake assist | It is not |
| The design of the body, providing energy absorption and dispersion of strike | It is not |
| EBD | Standard |
| Anti theft device | Standard |
| Additional equipment | ESP(エレクトロニックスタビリティプログラム) CBC(コーナリングブレーキコントロール) |
Comfort
| Air conditioner | Full Auto |
| Power window | Standard |
| Central switch | Standard |
| Steering column length | It is not |
| Steering column height | It is not |
| Cruise control | Standard |
| Finishing leather steering wheel | Standard |
| Leather seats |
| Power front seat | Standard |
| Power rear seat | It is not |
| Wood panel | Standard |
| Sunroof | Option |
| Sunroof | 16 inches standard |
| Folding seat | split |
| Glass with a UV filter | It is not |
| Toned glasses | It is not |
Gear ratio
| CVT | |
| 1 | 4.575 |
| 2 | 2.979 |
| 3 | 1.947 |
| 4 | 1.317 |
| 5 | 1.000 |
| 6 | |
| 7 | |
| Reverse | |
| Main drive | 5.024 |
