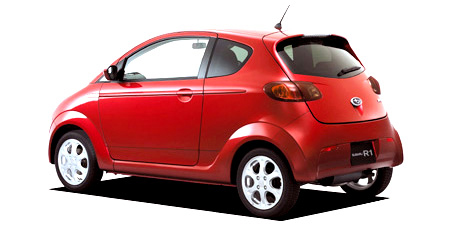

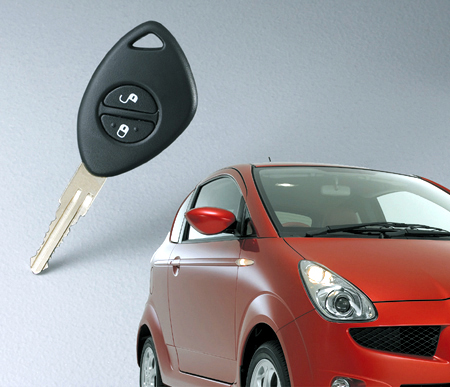

SUBARU R1 R - specifications

Model: CBA-RJ2, modification: R
Description
Modification R
Chassis ID CBA-RJ2
Registration Year 2005.1
Exterior Dimensions, mm 3285 x 1475 x 1510 mm
Interior Dimensions, mm 1505 x 1205 x 1175 mm
Wheelbase, mm 2195mm
Front/Rear Track, mm 1295mm//1285mm
Curb Weight, kg 840kg
Body Type Light
Doors/Seats 3 door//4
Engine
Model EN07
Type inline 4 cylinder DOHC 16-valves
Bore X Stroke, mm 56.0mmx66.8mm
Capacity, cc 658cc
Compression Ratio 10.5
Fuel System EGI(電子制御燃料噴射装置):マルチポイント インジェクション
Max. Power, HP/RPM 54ps(40kW)/6400rpm
Max. Power, HP/RPM 6.4kg m(63N m)/4400rpm
Supercharger It is not
Fuel tank capacity, L 30 l
Fuel Efficiency, l/100 km Regular unleaded gasoline
Fuel consumption, l/100 km 22.0km/リットル (10/15)
Steering & Suspension
Steering Column Length Power assist equipped rack&pinion
Suspension – Front/Rear L型ロアアーム Strut type Independent suspension
Brake – Front/Rear デュアルリンク Strut type Independent suspension
Front brake Ventilated disk
Rear brake Drum
Front wheel 155/60R15
Rear wheel 155/60R15
The minimum diameter of a turn 4.5m
Gearbox

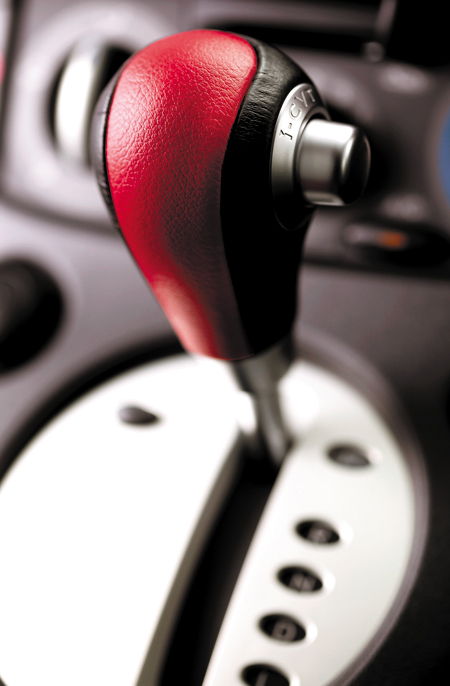

Number of steps / Type CVT
Drive Full-time 4WD
LSD ----
Exterier equipment
Front fog lights Standard
Rear fog lights It is not

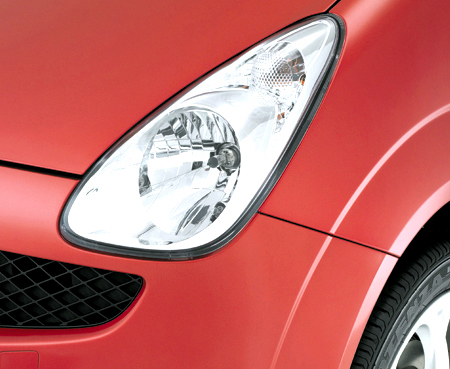

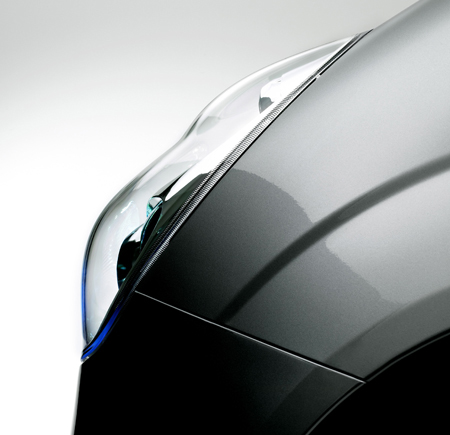

Xenon headlights Option
Additional front headlights It is not

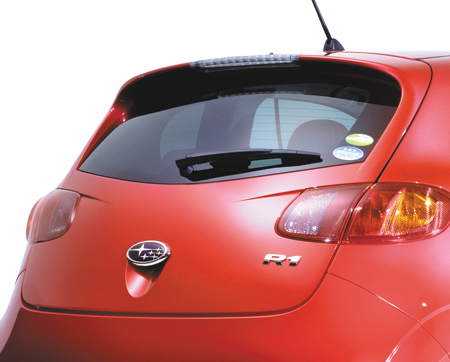

Front / rear spoiler It is not//Standard
Rear wiper Standard
Navigation, audio and video
Navigation It is not
Navigational device It is not
Audio AM/FMラジオ
CD-player 単装
Safe equipment
Driver's air bag Standard
Front passenger air bag Standard
Side airbags Option
ABS Standard
TRC It is not
Safety belts with tensioner Standard
Safety belts with tensioner Standard
Safety belts with holding Standard

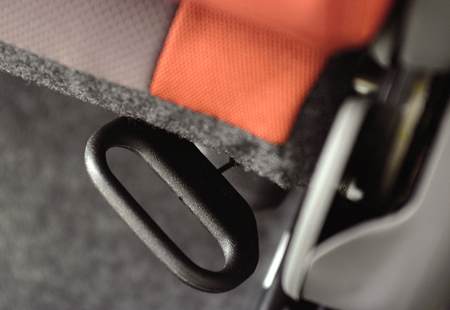

The mechanism of fixation of children's seats Standard
Safety planks It is not
Brake assist Standard
The design of the body, providing energy absorption and dispersion of strike 採用
EBD Standard
Anti theft device It is not
Additional equipment No
Comfort
Air conditioner Manual
Power window Standard
Central switch Standard
Steering column length It is not
Steering column height It is not
Cruise control It is not
Finishing leather steering wheel Option

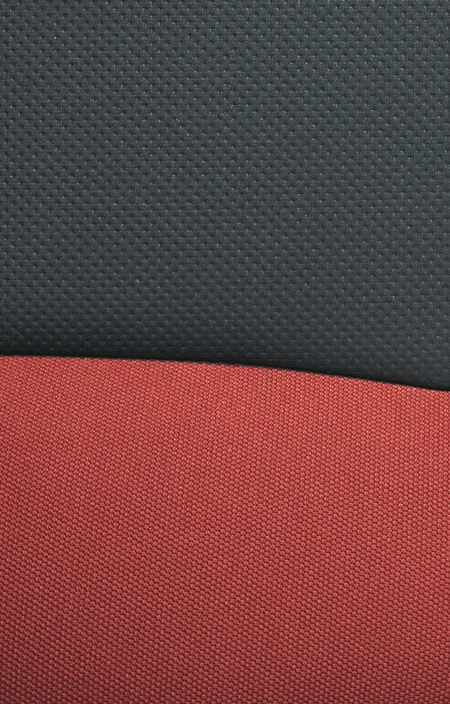

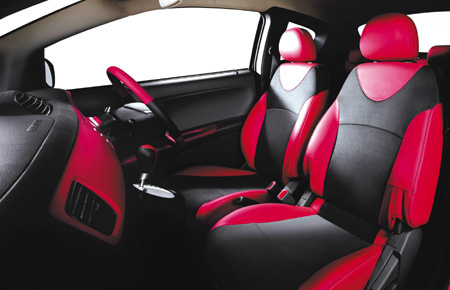

Leather seats
Power front seat It is not
Power rear seat It is not
Wood panel It is not
Sunroof It is not
Sunroof 15 inches standard

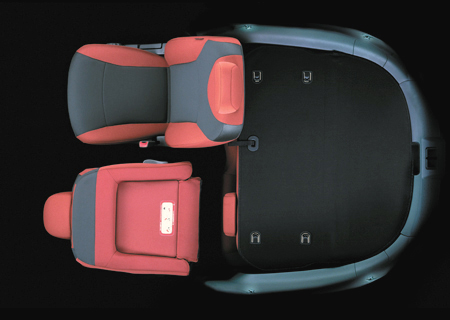

Folding seat 一体
Glass with a UV filter Option
Toned glasses Option
Gear ratio
CVT 2.432~0.442
1
2
3
4
5
6
7
Reverse
Main drive 2.432
