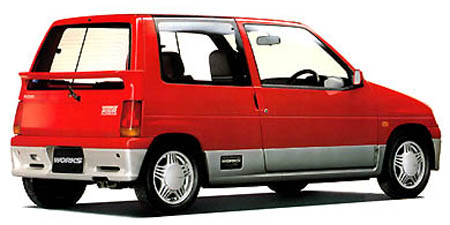

SUZUKI ALTO WORKS S/R - specifications

Model: M-CM11V, modification: S/R
Description
Modification S/R
Chassis ID M-CM11V
Registration Year 1988.9
Exterior Dimensions, mm 3195 x 1395 x 1410 mm
Interior Dimensions, mm ----x----x----mm
Wheelbase, mm 2335mm
Front/Rear Track, mm 1215mm//1200mm
Curb Weight, kg 650kg
Body Type Light
Doors/Seats 3 door//4
Engine
Model F5B
Type water cooling inline 3 cylinder SOHCIC-turbo
Bore X Stroke, mm 65.0mmx55.0mm
Capacity, cc 547cc
Compression Ratio 8.1
Fuel System EPi(電子制御燃料噴射)
Max. Power, HP/RPM 58ps(43kW)/6500rpm
Max. Power, HP/RPM 7.4kg m(73N m)/4000rpm
Supercharger IC turbo
Fuel tank capacity, L 30 l
Fuel Efficiency, l/100 km Regular unleaded gasoline
Fuel consumption, l/100 km (JC08)
Steering & Suspension
Steering Column Length Power assist equipped rack&pinion
Suspension – Front/Rear McPherson Strut type Coil spring
Brake – Front/Rear I.T.L(アイソレーティッド トレーリング リンク) type Coil spring
Front brake disk
Rear brake Drum
Front wheel 155/70R12 73H
Rear wheel 155/70R12 73H
The minimum diameter of a turn 4.6m
Gearbox
Number of steps / Type 5MT
Drive Full-time 4WD
LSD ----
Exterier equipment
Front fog lights Standard
Rear fog lights It is not
Xenon headlights It is not
Additional front headlights It is not
Front / rear spoiler Standard//Standard
Rear wiper Standard
Navigation, audio and video
Navigation It is not
Navigational device It is not
Audio It is not
CD-player It is not
Safe equipment
Driver's air bag It is not
Front passenger air bag It is not
Side airbags It is not
ABS It is not
TRC It is not
Safety belts with tensioner It is not
Safety belts with tensioner It is not
Safety belts with holding It is not
The mechanism of fixation of children's seats It is not
Safety planks It is not
Brake assist It is not
The design of the body, providing energy absorption and dispersion of strike It is not
EBD It is not
Anti theft device It is not
Additional equipment No
Comfort
Air conditioner It is not
Power window It is not
Central switch It is not
Steering column length It is not
Steering column height It is not
Cruise control It is not
Finishing leather steering wheel Option
Leather seats
Power front seat It is not
Power rear seat It is not
Wood panel It is not
Sunroof It is not
Sunroof 12 inches standard
Folding seat 一体
Glass with a UV filter It is not
Toned glasses It is not
Gear ratio
CVT
1 4.100
2 2.470
3 1.608
4 1.093
5 0.966
6
7
Reverse
Main drive 4.000
