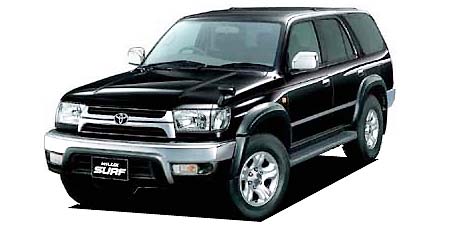

TOYOTA HILUX SURF SSR-X INTERCOOLER DIESEL TURBO WIDE BODY - specifications
Model: KD-KZN185W, modification: SSR-X INTERCOOLER DIESEL TURBO WIDE BODY
Description
| Modification | SSR-X INTERCOOLER DIESEL TURBO WIDE BODY |
| Chassis ID | KD-KZN185W |
| Registration Year | 1997.8 |
| Exterior Dimensions, mm | 4665 x 1800 x 1765 mm |
| Interior Dimensions, mm | 1850 x 1395 x 1165 mm |
| Wheelbase, mm | 2675mm |
| Front/Rear Track, mm | 1505mm//1495mm |
| Curb Weight, kg | 1800kg |
| Body Type | SUV |
| Doors/Seats | 5 door//5 |
Engine
| Model | 1KZ-TE |
| Type | water cooling inline 4 cylinder OHCIC-turbo (Diesel) |
| Bore X Stroke, mm | 96.0mmx103.0mm |
| Capacity, cc | 2982cc |
| Compression Ratio | 21.2 |
| Fuel System | 電子制御分配 type 噴射ポンプ(EFI) |
| Max. Power, HP/RPM | 140ps(103kW)/3600rpm |
| Max. Power, HP/RPM | 34.0kg m(333.4N m)/2000rpm |
| Supercharger | IC turbo |
| Fuel tank capacity, L | 70 l |
| Fuel Efficiency, l/100 km | Diesel |
| Fuel consumption, l/100 km | (JC08) |
Steering & Suspension
| Steering Column Length | Power assist equipped rack&pinion |
| Suspension – Front/Rear | Double wishbone type コイル (stabilizer attaching) |
| Brake – Front/Rear | トレーリングリンク Axle コイル (stabilizer attaching) |
| Front brake | Ventilated disk |
| Rear brake | Drum |
| Front wheel | 265/70R16 |
| Rear wheel | 265/70R16 |
| The minimum diameter of a turn | 5.7m |
Gearbox
| Number of steps / Type | 4AT |
| Drive | Part-time 4WD |
| LSD | standard |
Exterier equipment
| Front fog lights | Option |
| Rear fog lights | It is not |
| Xenon headlights | It is not |
| Additional front headlights | It is not |
| Front / rear spoiler | It is not//It is not |
| Rear wiper | Standard |
Navigation, audio and video
| Navigation | Option |
| Navigational device | It is not |
| Audio | AM/FM radio with CS player |
| CD-player | It is not |
Safe equipment
| Driver's air bag | Standard |
| Front passenger air bag | Standard |
| Side airbags | It is not |
| ABS | Standard |
| TRC | It is not |
| Safety belts with tensioner | It is not |
| Safety belts with tensioner | It is not |
| Safety belts with holding | Standard |
| The mechanism of fixation of children's seats | Standard |
| Safety planks | Standard |
| Brake assist | It is not |
| The design of the body, providing energy absorption and dispersion of strike | It is not |
| EBD | It is not |
| Anti theft device | It is not |
| Additional equipment | No |
Comfort
| Air conditioner | Full Auto |
| Power window | Standard |
| Central switch | Standard |
| Steering column length | It is not |
| Steering column height | Standard |
| Cruise control | It is not |
| Finishing leather steering wheel | It is not |
| Leather seats |
| Power front seat | It is not |
| Power rear seat | It is not |
| Wood panel | Option |
| Sunroof | Option |
| Sunroof | 16 inches standard |
| Folding seat | split |
| Glass with a UV filter | It is not |
| Toned glasses | Standard |
Gear ratio
| CVT | |
| 1 | 2.804 |
| 2 | 1.531 |
| 3 | 1.000 |
| 4 | 0.705 |
| 5 | |
| 6 | |
| 7 | |
| Reverse | |
| Main drive | 2.393 |
