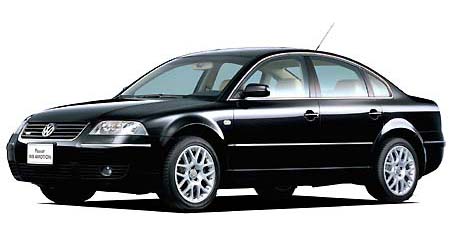

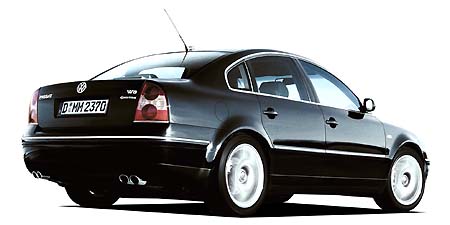

VOLKSWAGEN PASSAT W8 4MOTION - specifications

Model: GH-3BBDNF, modification: W8 4MOTION
Description
Modification W8 4MOTION
Chassis ID GH-3BBDNF
Registration Year 2004.4
Exterior Dimensions, mm 4700 x 1745 x 1460 mm
Interior Dimensions, mm ----x----x----mm
Wheelbase, mm 2700mm
Front/Rear Track, mm 1495mm//1495mm
Curb Weight, kg 1750kg
Body Type Седан
Doors/Seats 4 door//5
Engine
Model BDN
Type W型 8 cylinder SOHC 32-valves
Bore X Stroke, mm 84.0mmx90.2mm
Capacity, cc 3998cc
Compression Ratio 10.7
Fuel System 電子制御
Max. Power, HP/RPM 275ps(202kW)/6000rpm
Max. Power, HP/RPM 37.7kg m(370N m)/2750rpm
Supercharger It is not
Fuel tank capacity, L 80 l
Fuel Efficiency, l/100 km Unleaded premium gasoline
Fuel consumption, l/100 km 6.8km/リットル (10/15)
Steering & Suspension
Steering Column Length Power assist equipped rack&pinion
Suspension – Front/Rear 4リンク(スタビライザーバー付)
Brake – Front/Rear Double wishbone (スタビライザーバー付)
Front brake Ventilated disk
Rear brake Ventilated disk
Front wheel 225/45 R17
Rear wheel 225/45 R17
The minimum diameter of a turn 5.4m
Gearbox
Number of steps / Type 5AT
Drive Full-time 4WD
LSD ----
Exterier equipment
Front fog lights Standard
Rear fog lights Standard
Xenon headlights Standard
Additional front headlights It is not
Front / rear spoiler It is not//It is not
Rear wiper It is not

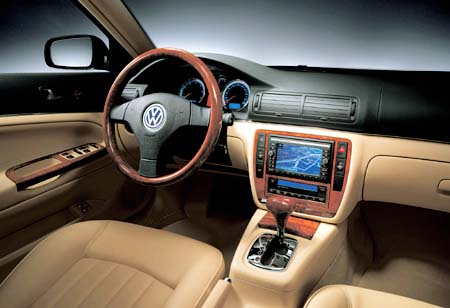

Navigation, audio and video
Navigation Standard
Navigational device DVD
Audio AM/FM radio with MD player
CD-player It is not
Safe equipment
Driver's air bag Standard
Front passenger air bag Standard
Side airbags Standard
ABS Standard
TRC It is not
Safety belts with tensioner Standard
Safety belts with tensioner Standard
Safety belts with holding Standard
The mechanism of fixation of children's seats Standard
Safety planks Standard
Brake assist Standard
The design of the body, providing energy absorption and dispersion of strike It is not
EBD Standard
Anti theft device Standard
Additional equipment ESP(エレクトロニック スタビリティ プログラム) EDS(エレクトロニック ディファレンシャルロック システム)
Comfort
Air conditioner Full Auto
Power window Standard
Central switch Standard
Steering column length Standard
Steering column height Standard
Cruise control Standard
Finishing leather steering wheel It is not

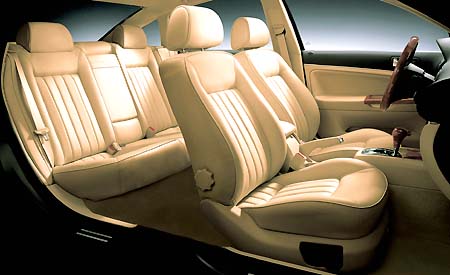

Leather seats
Power front seat Standard
Power rear seat It is not
Wood panel Standard
Sunroof Option
Sunroof 17 inches standard
Folding seat It is not
Glass with a UV filter Standard
Toned glasses Standard
Gear ratio
CVT
1 3.664
2 1.998
3 1.406
4 1.000
5 0.742
6
7
Reverse
Main drive 4.095
